2 meters of AIRCELL 7 Co-axial cable, ideal for use to connect your aircraft transponder up to your transponder antenna. This includes one compatible BNC connector supplied loose, not fitted. Your transponder installation manual will tell you what other connector you need - TNC or BNC. If you would like us to supply a custom cable made up to your length and already terminated with connectors, then contact us.
Compatible with any of our transponders found here.
Also compatible with any of our transponder antennas here.
You will need the appropriate termination at each end of the cable.
BNC connector can be found here.
TNC connector can be found here.

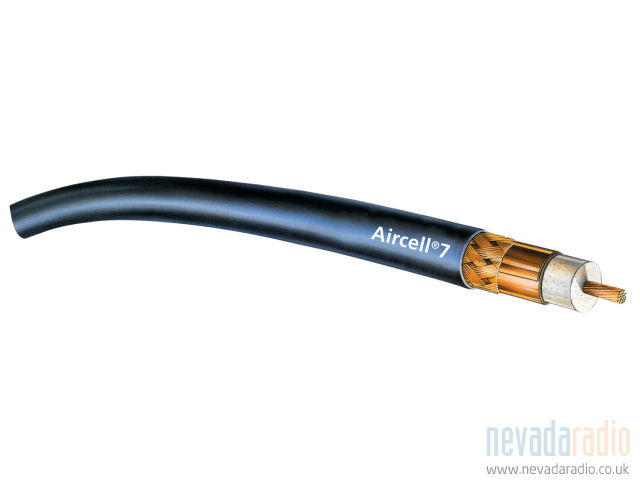

Aircell 7 is an ultra low loss 7mm diameter coaxial cable that is suited to professional telecommunications and amateur use.
The performance of Aircell 7 is achieved by utilising a low-loss, humidity-resistant PE-LLC Compound Dielectric with a gas percentage of more than 70% combined with a 19 strand multi-core inner conductor made of low-oxygen copper.
The shielding is manufactured with two layers of copper; on a thin, overlapping copper foil (100% shielding) is a braided copper mesh (70% shielding), giving it excellent shielding properties. The foil is PE-coated on the inner side, giving it good protection against splitting if the cable is bent too tightly. The black PVC Jacket of Aircell 7 is UV-stabilized.
Impedance 50ohms
Capacitance 75pF/m
Velocity Factor 0.83
Max Freq 6Ghz
Attenuation, 50Mhz 4.52dB/100m
Inner Conductor Stranded CU wire, OFC, 19 x 0.37mm; 1.85mm diameter
Dielectric PE low-loss compound, 5.0 mm diameter
Outer Conductor 1 Copperfoil, PE coated
Shielding Factor 1 100%
Outer Conductor 2 Copper Braid
Shielding Factor 2 70%
Sheath Black PVC, UV-resistant
Outer Diameter 7.3mm
Bend Radius min. 25mm
Weight (100m) 7.20kg
