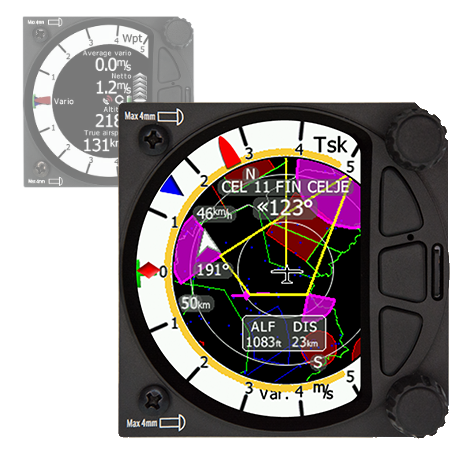

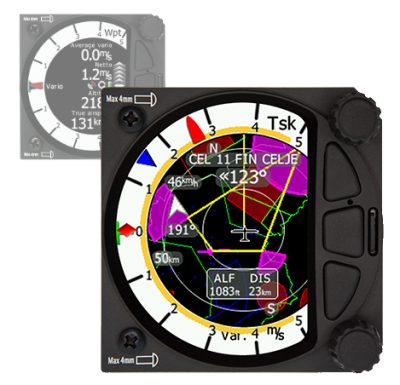

S80D/S100D rear seat repeater

S80D/S100D rear seat repeater

£1,079.00
(Inc. 20% VAT)
(£899.17 Exc. VAT)
Earn 1,079 Loyalty Points
–
+

The S80D has been discontinued. The S100D has all of the functionality of the old S80D with the added benefit of the CAN2PDA board built in - meaning you can connect an Oudie into the rear seat repeater with ease.



All the LXNAV standalone variometers have rear seat repeaters (D models). The great thing is they are interchangeable. i.e. you can mix and match S80/S8/S100/S10 with S80D/S8D/S100D/S10D. The second unit is more than just a repeater display; it has all of the same functionality as the main unit. Front and back units are connected together with a CAN Bus cable carrying both data and power. (See setup pic. below.)

One of the great features of the S80 and S8 is connectivity for a PDA or Oudie including power and data from the main unit. You can also drive a second rear seat PDA or Oudie using a PDA-CAN box. This small box connects into the CAN Bus cable between the front and rear vario and provides data and power to the second PDA or Oudie. Parameter changes from PDA to and from the vario are possible such as MacCready, QNH etc.

Please note - if you are ordering the S100D or to S10D the PDA-CAN box is already built in, so you do not have to purchase the separate unit.


More Information
Specifications
  • ARM Cortex-M4 processor running on 160MHz
  • 3.5'' QVGA sunlight readable screen with 1200nits
  • QVGA (320*240pixels) sunlight readable display
  • Digital temperature compensated pressure sensors for altitude and airspeed
  • inertial platform 3 axis digital +-8g accelerometer, 3 gyroscopes (for inertial vario, AHRS and wind calculation)
  • Dual pressure Technology
  • Smooth audio output
  • Audio equalizer
  • integrated synthesized speech output
  • audible thermal assistant
  • External SD card for configuration, flarmnet and firmware update
  • 2 rotary switches (knobs) with push button function and 3 push buttons are used for input
  • ALS (ambient light sensor)
  • 6 digital inputs - SC, VP + 4 custom defined
  • 80 mm air norm size



  • Moving map with airspace track up option
  • Airspace display
  • Waypoints and Task display
  • AHRS display (optional)
  • Thermal assistant
  • Display of 4 configurable (navboxes) values
  • Display of 3 configurable (navboxes) values on map screen
  • Waypoint navigation
  • TASK navigation
  • Flarm radar
  • Flarm warnings
  • Flarm Net



  • 16 bit color display
  • 3.5” (9cm) screen
  • 320 by 240 pixel resolution
  • 1200 cd brightness



  • GPS port input/output on RS232 level (standard IGC 6 pin connector RJ11)
  • PDA port input/output on RS232 or TTL level for PDA/PNA devices with 5V power supply (8 pin RJ 45, 5V output max 2A)
  • Audio output
  • 1Mbit CAN bus for connection for S8D repeater, Compass module or remote stick
  • Speed command and Vario priority input and 4 additional user defined inputs
  • Two Rotary knobs with push function
  • 3 push buttons



  • AHRS activation with a CODE - no need of for any hardware upgrade
  • Remote stick
  • Compass module (not supported yet - under development)
  • S80D repeater unit
  • Oudie
  • Bluetooth module
  • Nano/Nano3
  • FLAP sensor



  • Power input 10-16V DC
  • Consumption of LXNAV S80 at 12 V:
    • 140 mA - minimum brightness without audio
    • 190 mA - maximum brightness without audio
  • Consumption of LXNAV S80D at 12 V:
    • 90 mA - minimum brightness without audio
    • 140 mA - maximum brightness without audio



  • 80 mm (3.15") standard aircraft cut-out for the LXNAV S80 indicator unit
  • 81x81x45mm
  • Sensor box: 65x45x85mm (not including connector)
  • All together: 81x81x132mm (not including connector)
  • Weight: 460g (290g for S80D)
