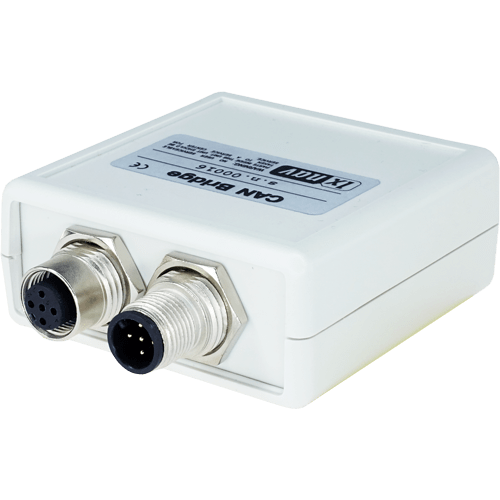

Many of the new 833 radios and Mode S transponders have an RS232 NMEA interface to receive and transmit data allowing you to control the devices externally. This ability was not lost on LXNAV and the team set to work creating a 232 bridge device to connect the LX 8xxx and LX9xxx devices to these remote devices. At the same time, they create some very clever software that allows both manual change of the Transponder squawk code and or automatic change of the Radio frequency based on airport “go-to”. If you have a Radio Bridge connected, from any navigational page you can press the Radio button and this will show you the current frequency, standby frequency allow you to change the frequency, volume and squelch. The LX software also gives you a history of the last used frequencies or will take the frequency associated with any airfield in the airports database. A real time and workload saver when you are low and need to call ATC! All this clever stuff makes light work in stressful situations. So if you are on a navigational page (Airport, waypoint or Task) then you can press the Xpdr button for Transponder and this will show you the current squawk code, Transponder mode and Flight level. You can then adjust the mode or squawk code via the drop down menus, rotary knobs or the LXNAV remote stick. Bridge Options: - Becker AR6201, BXP6402, RT6201, AR6203 - TRIG TY91/92 - f.u.n.k.e ATR833 - KRT-2S - AC57
Please note that this decvice requires a CAN Y cable from 2xDB9 to M12 to connect to an S vario
Supported radio stations and transponders: | |
| | | |
| Device name | Tested with physical device? | Notes |
| ACD57 | Yes | - |
RADIO | BECKER CM4201 | - | Physical device needed to test. |
RADIO | DITTEL KRT2 | Yes | - |
RADIO | GARMIN SL40 | - | Physical device needed to test. |
RADIO | BECKER AR6201 | | AR6201 Versions Issue 04 doesn't support RS-232 connections. |
|
BECKER RT6201 |
|
BECKER RCU6201 |
|
BECKER AR6203 |
RADIO | FUNKWERK ATR833 | Yes | Minimum radio firmware version 6.4 |
RADIO | FUNKWERK ATR833-II | | Radio version: |
HW2.0, SW1.05, FW3.00 |
RADIO | TRIG TY91/92 | Yes | - |
TRANSPONDER | ACD57 | Yes | - |
TRANSPONDER | BECKER BXP6402 | Yes | - |
TRANSPONDER | FUNKWERK TRT800 | - | The status interface is a TX-only connection, not possible to control it. |
TRANSPONDER | TRIG TT 21/22 | Yes | - |
