LXNAV G Meter 57mm FR

£518.00

(Inc. 20% VAT)

(£431.67 Exc. VAT)

Earn 518 Loyalty Points

–

Intuitive standalone digital G-meter with built-in Flight recorder!

Standalone G-meter indicates and logs g-forces with an integrated high precision digital pressure sensor and inertial platform. The unit has standard dimension of 57 mm diameter.

More Information

G-meter

Intuitive standalone digital G-meter with built-in Flight recorder!

2.5” Very Bright Display

Standalone G-meter indicates and logs g-forces with an integrated high precision digital pressure sensor and inertial platform.

The unit has standard dimension of 57 mm diameter.

3 Push Buttons. SD Card.

Used for a simplified handling during the flight or ground operations. Micro SD card for data exchange (SW update and Flight downloads).

INERTIAL PLATFORM. LIMITS.

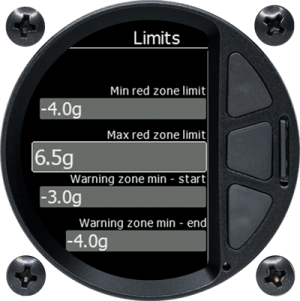

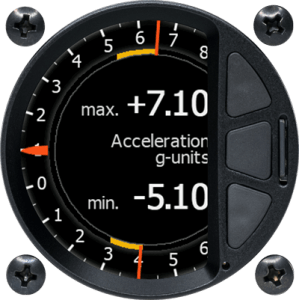

Inertial platform with +-8g accelerometer. Device is showing current g-load in navbox/needle and it’s min-max values in bar. Last flight min/max load navboxes are persistent till next flight. Min/Max limits with Warning zones can be defined.

MicroSD Card. Ambient Light Sensor.

MicroSD card socket for data exchange and ALS for energy saving.

DISPLAY.

Real Time Data is displayed on a QVGA 320×240 pixel 2.5-inch high brightness colour display.

LOGBOOK.

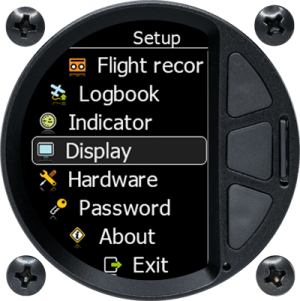

The logbook menu displays the list of flights. If the RTC time is set properly the take-off and landing time shown will be correct. Each flight item consists of the maximum positive g-load, the maximum negative g-load from the flight and the maximum IAS. This function is available only with “FR” version.

Specifications

Size And Weight

Height: 61mm

Width: 61mm

Depth: 48mm

Weight: ~200g

Flight Recorder

Specification

Built-in RTC (Real time clock)

Flight Storage

Flights stored in IGC file format are downloadable on SD card.

Chip

ARM Cortex-M4 160MHz

Display

2.5-inch sunlight readable

16 bit color display

1200 cd brightness

320-pixel-by-240-pixel resolution

ALS – ambient light sensor

Sensors

High resolution airspeed sensor

Inertial platform 3 axis accelerometer (+-8g) and 3 axis gyroscope

Connections

Serial port input/output on RS232 level (standard IGC 6 pin connector RJ11)

Micro SD card

Buttons

3 x Push buttons

Storage

2 GBytes of internal memory

Integrated SD card reader

Consumption

At 12V (power input 8-32V)

90 mA – 140 mA

Material

Aluminum housing
