LXNAV LX8030D Rear Seat Repeater + Vario Repeater

£1,395.00

(Inc. 20% VAT)

(£1,162.50 Exc. VAT)

Earn 1,395 Loyalty Points

Version

Vario

–

+

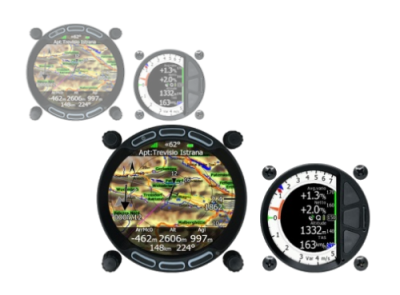

This is the rear seat repeater unit for the LX8030. With the same size format as the LX8030, it is designed to fit into the rear seat of a two seat glider and includes a 57mm i8 vario repeater or can be upgraded to include an 80mm i80 vario repeater.

Any LX90xx/LX80xx rear seat repeater can be used with any LX90xx/LX80xx front seat unit. This means for example you could have a larger display (LX9000) in the front, and a smaller display (LX9050 or LX8040 or LX8030) in the back where space might be more of a premium.

High-end vario navigation system. The ideal instrument for those who would like to keep their instrument panel as it is. The 80mm sized LX8030 comes packaged with a V8 variometer (optionally with V80). The built in 4.0″ anti-glare display fits into a standard 80mm panel hole and has 2.8” active display size. An automatic light sensor adjusts the brightness and optimizes the power consumption.

More Information

FLIGHT RECORDER. Integrated.

High-level IGC approved flight recorder with advanced engine noise level sensor. With MOP and MOP2 devices also JET, Electro and FES approved

Statistics.

Many statistics are available during and after the flight. Real time OLC scoring is available during the whole flight.

The Map. Details. Whole world.

Preloaded worldwide terrain, map, airspace and airport databases – FREE of charge!

APT mode. RWY info. NEAR mode.

Airport mode navigates to a selected airport with all necessary information, such as RWY direction, length, frequency and type (grass/asphalt). Each page layout can be completely customized using LX Styler.

Waypoint and Task Mode.

Very easy selection of Waypoints with an intuitive user interface. Create a task on the device or in SeeYou and simply load it via the SD, USB or Wi-Fi.

CUP files supported!

Assigned Area Task AAT.

The AAT assistant shows the most optimized direction for maximum speed on the task. A very accurate time calculation helps you to arrive home precisely on time.

FLARM Mode.

This feature displays all types of FLARM objects. ADS-B and PCAS objects can also be displayed if compatible, external devices are connected.

FLARM Visual Radar With Audible Warnings.

The Radar shows all necessary data. The target’s present position, altitude and vertical speed are displayed on the map. For each new alert a pop-up appears automatically when a potential collision occurs. The system will also trigger a sound and/or voice warning.

Internal/External.

Flarm/PowerFlarm can be either an internal or an external module.

ADS-B In.

Optionally can be built in.

Be online anytime, anywhere.

With LXNAV Connect and Wi-fi module, unlock the full potential of your device.

Many different services with even more on the way.

NOTAMs, flight uploads, GPSAeroData, US Charts, device upgrades and many other features are now just a click away even while flying.

Rain radar.

Don’t be worried while flying a long distance flight – now you can see a real time rain radar picture while in the air.

Satellite image.

Combine it with satellite image to ensures you stay one step ahead of the weather at all time.

TopMeteo and SkySight weather forecasts.

Its like having a meteorologist flying by your side with weather forecast services provided by TopMeteo and SkySight. More then 20 different weather layers allow you to plan your flight to perfection.

CUPx files: Landable Fields With Pictures.

Create your own Waypoint file with terrain photos.

Wind.

An inertial variometer provides a very accurate wind indication during straight flight.

4 METHODS

Precise calculation composing 4 calculation methods.

Specifications

80mm Size hole

4 Inch Anti glare display

31% Bigger Screen than 8080

32% Better screen to house ratio then 8080

Customer Reviews

Be the first to Write a Review for this item!

Brand

LXNAV
